Quality Filters

HEPA Filters

• Designed to provide the highest levels of air cleanliness for industrial ventilation.
• HEPA (High Efficiency Particulate Arrestance)
• 99.97% Efficient in removing .3 micron particle size
• HEPA Filter replacement details.

Merv 8 High Capacity Pleated Air Filter

• Radial Wedge pleats minimize end losses and reduces pressure drop
• Diagonal and horizontal support members provide frame strength
• Filter media pack is sealed to eliminate air bypass
• Average ASHRAE efficiency is 25-30%
• Average arrestance is 90-92%
• Pleated Air Filter replacement details.

Merv 11 Pleated Air Filters

• SUPERCHARGED HIGH PERFORMANCE
• Merv 11 per ASHRAE Standard 52.2
• 1″, 2″ or 4″.depths
• All standard sizes + custom sizes
• Available in standard and high capacity versions
• UL Class 2 listed MERV 11 filter details.

Odor Control Filters

• MERV 7
• Reduces Odors
• Heavy-duty, Moisture resistant
• The polyester media is filled with fine mesh activated carbon throughout the media.
• The ultra pure carbon is thermally bonded to the polyester fibers providing superior product design.
• Odor Control Filter replacement details.

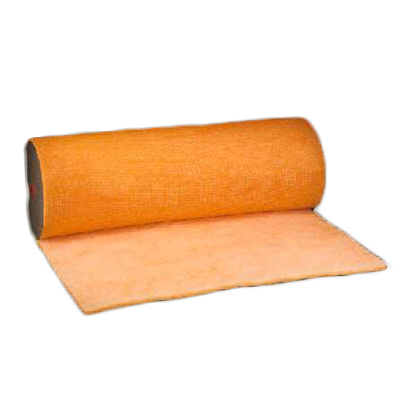

Dustlok Polyester Panels

• High Performance Media
• Spor-Ax® Antimicrobial Agent
• Dual Density Design
• Non-Migratory Adhesive
• Flame Retarded. U.L. Class 2
• Dustlok Antimicrobial Media details.

Fiber Bond Poly Panels

• Consistently Highest Quality.
• Non-carcinogenic Polyester Media.
• Easy to Handle and Work With.
• Flame Retarded. U.L. Class 2 Rated
• Poly Panel details

Dustlok Cube Filters

• Non-carcinogenic Polyester Media
• 100% Effective Filtering Area
• High performance Dustlock Media
• Spor-Ax® Antimicrobial
• Quick and Easy to Install
• Compact Depth Design
• Cube Filter details.

Holding Frames

• Frames are designed for retaining air filter media pads in applications that require media support.
• The frames are made of 24 gauge galvanized steel channel with each corner of the frame mitered for square ness.
• Filter pads are supported on the down stream side with a galvanized steel expanded metal lathe grid.
• Filter holding frame details.

Paint Booth Filters & Over Spray Collection Media

• Pads
• Bulk Rolls
• Performed Blankets
• NEW SMARTMEDIA

Polyester Media

• Consistently highest quality
• Unaffected by moisture
• 1/2″, 1″, 2″, Dry or Tackified
• Easy to handle and work with
• Flame retarded
• Polyester Media details.

MiniPleat Air Filters

• Minipleats offer the same efficiencies as our cell filters, but in a lightweight, fully disposable, filter that is only 4″ deep.
• Shipped three per box, this filter minimizes shipping costs as well as storage.
• Minipleat Air Filter replacement details.

Rigid Air Filters

• Rugged galvanized steel casing minimizes damage during shipping and handling
• Choice of spun glass or synthetic media in four efficiency ranges
• Units are available with or without header
• Now with plastic or steel pleat separators
• Rigid Air Filter replacement details.

Cell Filters

• 65%, 85% and 95% ASHRAE efficiency rages
• Rugged galvanized steel frame and aluminum separators
• 6″ and 12″ depths
• Ideal for variable air volumes and high humidity applications
• Rigid Cell Filter replacement details.

V-Cell Filters

• Polypropylene injection molded frame
• Polypropylene thermally bonded pleat separators
• Non-shedding, gradient density polypropylene media
• Available in single header construction only.
• V-Cell Filter replacement details.

Disposable Air Filters

• Fiberglass
• Polyester
• One-piece moisture-resistant chipboard frame.
• Filters are UL 900 Class 2 listed. Special sizes available upon request
• Disposable Air Filter replacement details.

Rigid Pad Filter Media

• Made of 100% Polyester.
• High arrestance and dust holding capacity.
• Cuts easily with scissors or utility knife.
• Can be washed or vacuumed
• Rigid (needs no frame)
• Rigid Pad Filter Media details.

VCell Prefilter Merv 8 Pleats

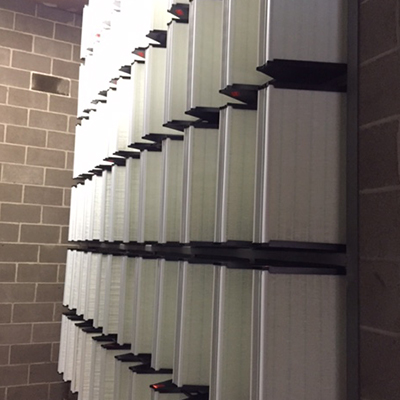

Vcell Downstream
